working principle:

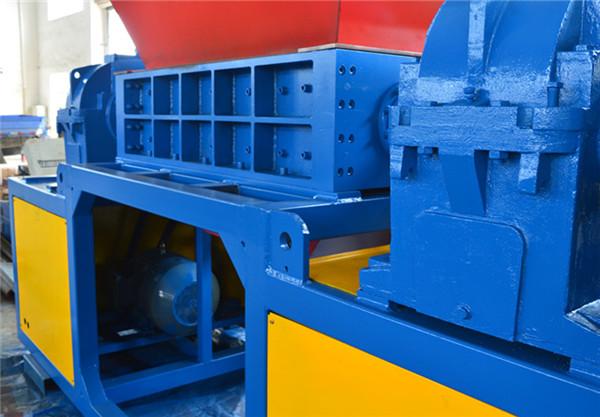

1. Crusher body
The main body of the equipment is made of high-quality steel plate to eliminate stress treatment/integral machining, and the equipment is stable under heavy load for a long time.
2. Moving knife / fixed knife
The movable knife material is made of special special alloy tool steel forging blank, precision machining, multiple heat treatment and low temperature freezing heat treatment technology. The overall toughness and hardness can be repeatedly repaired and used in cutting performance and service life. The fixed knife is patent-hooked to optimize the tool change function, making tool maintenance replacement more efficient.
3. Bearing/seal
The bearing seat adopts the patented split-and-disassemble type, which can quickly remove the movable knife, fixed knife, bearing and other components, easy to maintain and replace the tool. The unique sealing structure effectively blocks the contact between the broken material and the grease, and the liquid material can also protect the bearing. And gears, etc.
4. Knife shaft
It is made of high-strength and heavy-duty special steel for processing and refining, and it is more reasonable to cooperate with the tool to provide powerful power for cutting.
Features:
Heavy-duty moving knives, high-breaking efficiency, high-speed knives and fixed knives are all cast from alloy steel, sturdy and long service life.
Iron frame plate is thick, resistant to high torque, very strong
Easy to adjust, low maintenance, economical and durable
The unit yield is the theoretical calculation of the throughput, and the specific use should be based on the actual crushed material density and shape.
use:
Generally used to shred hard-to-break plastic, rubber, fiber, paper, wood, electrical components, cables and other solid materials, such as: nozzle material, plastic head, PET bottles, cardboard, circuit boards, wood, plastic barrels, etc. As long as it is difficult to pulverize the material, the product that enters the shredder becomes 20x40mm granular. The shredder uses a low speed, safe, no hazard, low noise, low energy consumption and practicality.
